Orient Beams Perpendicular To Surfaces Using Dynamo

From the Simply Complex blog:

ORIENT BEAMS PERP TO SURFACE USING DYNAMOBIM

By Marcello Sgambelluri‏
Thursday, November 23, 2017

Have you ever wanted to orient your beams perp to the surface?

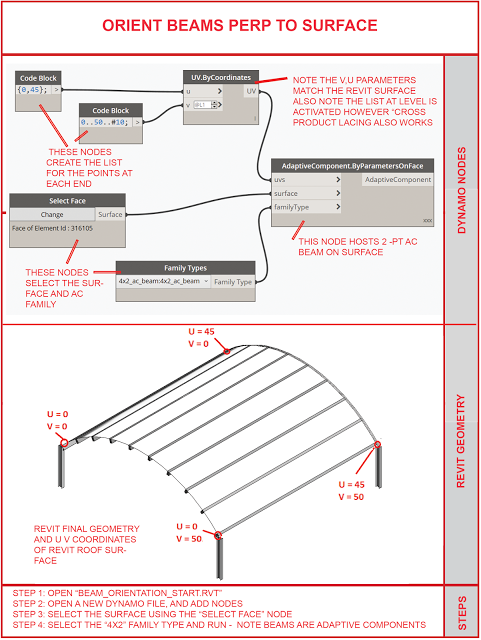

See the following image and learn how. Also click this link for the sample Revit file.  BEAM_ORIENTATION_START.RVT

Note that Adaptive Component Beams were used for this example for simplicity.
A more complex example using structural framing family beams to follow soon.


There’s more information available on the…
Read more
