Making a Family that Can Use Either Instance or Type Dimensions

Making a Family that Can Use Either Instance or Type Dimensions

Let’s say you have a family that has shape handles for instance dimensions (Length Parameters). What if you want to use it for quick prototyping, and then switch that same family into a version that uses Type based parameters?

Here’s how I went about it:

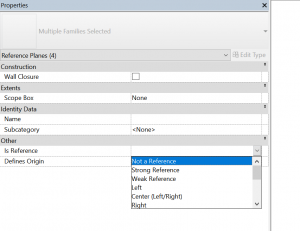

  • Change all existing Reference Planes to “Not a Reference”

  • Create new Reference Planes
  • Create new instance parameters bound to those Reference Planes

  • Lock one of the planes on each Dimension to existing origin planes
  • Create a corresponding set of Type dimensions
  • Create a set of Yes / No parameters for “Use Type for …”

  • Create formula like:
    if(Use Type for X, x type, x instance)
  • Apply it to the original parameters (the ones that are driving geometry):

How to Use:

  • Place the family
  • Resize using the shape handles (instance dimensions)
  • Then,
  • Create a Type
  • Modify the type Values and Tick the “Use Type” box

At this point, the Shape Handles are still visible, but only the Type values are used for the geometry.
