Replace Existing Sheet and Retain Waypoints with HoloBuilder

Replace Existing Sheet and Retain Waypoints with HoloBuilder

We have been using HoloBuilder to capture as-built conditions on a huge hospital project, in order to maintain the federated BIM dataset (BIM to FM / Asset Information Management). 360 photos are a very quick and easy way to capture the context of building elements, but not their geometry.



This tip comes from one of our local HoloBuilder experts, Lisa Verschoor:

How to move across an updated drawing/sheet in HoloBuilder and have the already existing waypoints attached to the earlier version carry over automatically

    • Open HoloBuilder

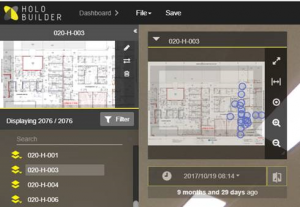

    • Select sheet you want to replace (in example pic below I’m replacing sheet 020-H-003)
    • Click on the “Exchange this sheet” button (two opposing arrows)



    • Prompt will ask “Do you really want to replace the current Sheet with a new one?”
    • Click Ok
    • Now drag and drop updated sheet
    • Select High Res option
    • Ok
    • All done!
