AutoCAD: Layout Preview Thumbnails

Preview all the layouts in AutoCAD for easier use.
Català – Castellano – Deutsch

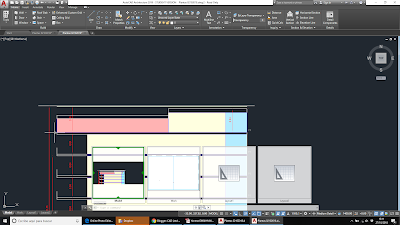

. In AutoCAD files with many Layout Tabs it can become quite tedious to navigate through them if one does not have a very clear coding of the layout tab names. To solve this, AutoCAD, since v.2009 has a command called QVLAYOUT that allows you to preview all the layouts with a line of thumbnails at the bottom of the screen so you can visually select to which one you want to jump to. You can even change the size of the thumbnails with the usual CTRL+Mousewheel. See below.

You can also quick access this fucntion with the QVL shortcut.
