Elevation Depth Cueing in Revit 2017

This is a new feature in Revit 2017, which has long been on many architectural user’s wishlist.  OK, lets do some testing and see if we are ready to take it off the wishlist yet?. . . . .

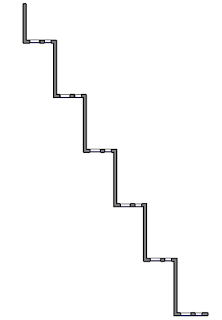

  • First I set up a series of walls that are stepped in plan, with a few windows in the walls.

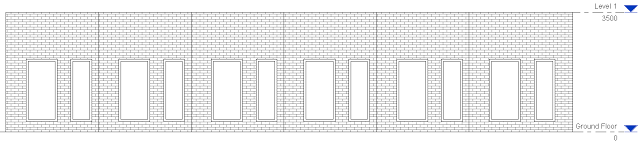

  • Then created an elevation view looking at the walls and windows
  • In order to examine what is going on with depth cueing, I needed to artificially bump up the line weights of the elevation…
