Curtain Wall families in Revit are indicated by 3 dashed lines at the perimeter of the system. Each Curtain Wall system contains multiple components: Curtain Panels, Curtain Mullions and the boundary condition of the overall Wall System. Upon publishing to Assemble, a Curtain Wall System is represented in Assemble graphically displaying the Curtain Panel and Curtain Mullion components. The boundary condition for the overall Curtain Wall system is not supported, but the summary Quantity is published in the Walls Category. This document outlines how to manage Curtain Walls in Assemble.
Figure 1: Curtain Wall System highlighted in Revit 2015.

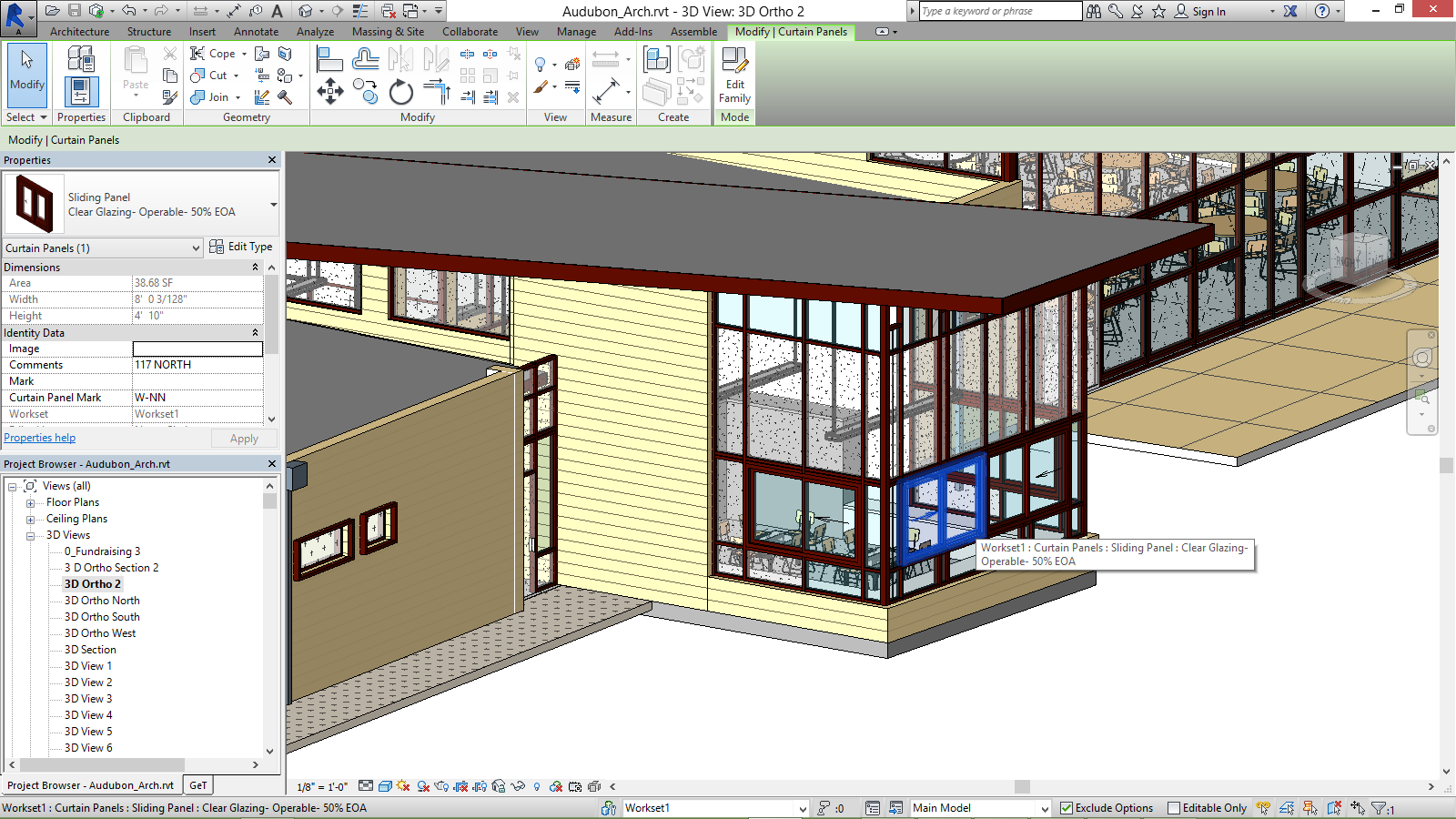

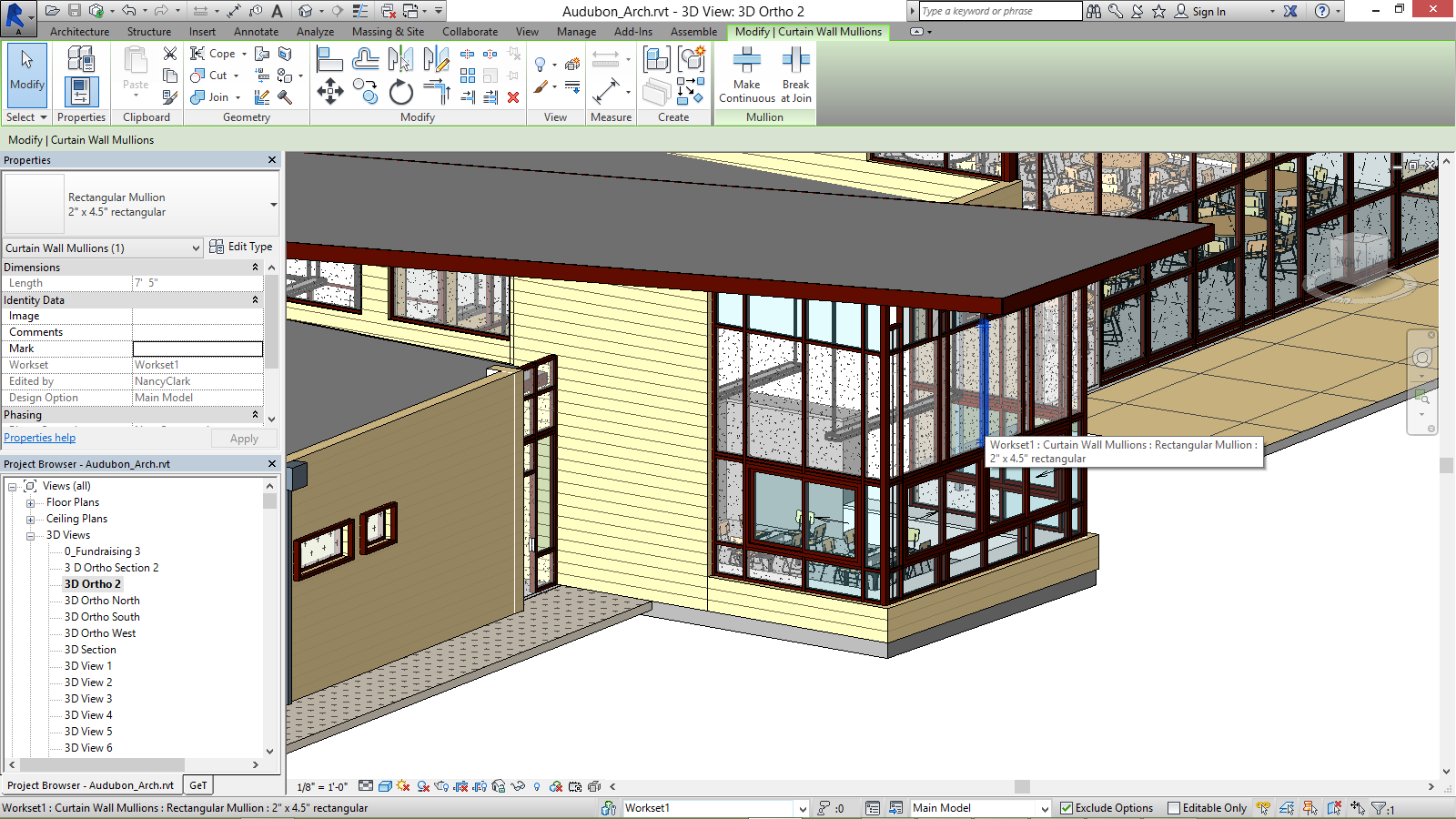

Figure 2: Curtain Panel (a singular component in the Curtain Wall system above) and Curtain Mullion (at right).
The following workflow can help the VDC/BIM Manager, communicate the various curtain wall quantities and their relationship to the estimator.
Step 1: Create a View of the Curtain Panels, Curtain Mullions and Curtain Wall.
Select all…
