ACA: Schedule Tag Background Mask

I suppose I must have known about this at some time in the past, but having never made use of it, it slipped my mind. The other day, I needed to make some Schedule Tags to replace some attributed Block References. The Attribute Definitions in the Block References had background masking turned on, so that they could be placed on top of other linework and the mask would assure that the contents of the attribute remained readable.

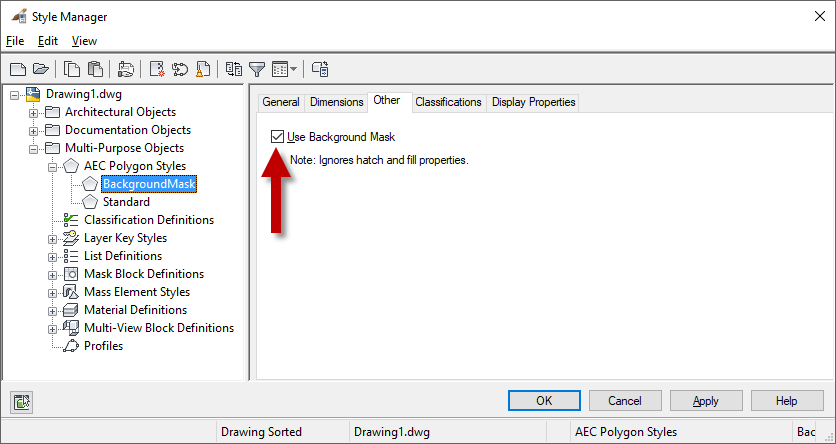

I made use of the graphics from the Block Reference and ran it through the DefineTag command to create the Schedule Tag Multi-View Block reference. I was hoping that the background mask on the Attribute Definition would be respected in the Schedule Tag, but it was not. An internet search turned up this Autodesk Knowledge Network Article, allowing me to re-learn what I had probably forgotten. You create an AEC Polygon Style to use for the background mask; on the Other tab, check the Use Background Mask toggle.

If you do not want the border of the AEC…
