They Broke Their Own Cloud Space in Revit 2022

Way back in Revit 2015, Autodesk gave us a really nice enhancement:

  • Ability to use all the sketch line drawing tools to quickly create Revision Clouds.



Prior to v2015 we had to laboriously draw each arc of the cloud as a segment (2 clicks:  for start and end of the arc) – the longer the segment, the larger the arc radius.  For those who never experienced it, that was a really tedious workflow.

I remember from Beta testing that we requested for the Rectangle to be the default drawing tool (it was not initially – I think the original default was either the line or circle.  Luckily we asked for that request before the code was finished so it was quickly implemented.

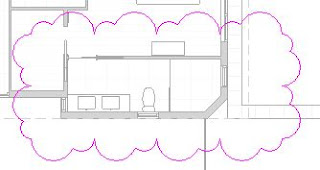

One of the other little features they added was the ability to reverse the direction of the cloud using the space bar – as it was being drawn:



This allowed the user to create a reverse or inside-out cloud – it may look ugly but it has a very specific use:  To indicate “Hold” on part of the drawing or model.

They Broke…

Read more
